8 Inch Face Recognition Temperature Measurement with Masks
Details of product:
1. Support verification and comparison of identity card (id card
reader module is required.
2. Support self-service list batch import, list management more time
and effort.
3. Support face whitelist real-time distribution.
4. Support screen display content configuration, custom organization
name.
5. Support remote management of equipment.
6. Support passenger aircraft booking, WeChat official development of
visitors self-help booking, user face registration function.
7. Support mask face recognition and temperature detection.
8. Support face recognition door opening, visual intercom door
opening, APP door opening, card opening, password opening and other
functions.
| Product model | YD08FRT02 |
Camera | Resolution | 2MP pixel |
| Type | Binocular wide dynamic camera |
| Aperture | F1.8 |
| Focus Distance | 50-150cm |
| White Balance | Automatic |
| Fill Light | LED and infrared double fill lights |
Screen | Size | 8.0inch IPS LCD display |
| Resolution | 1280*800 |
Processor | CPU | RK3288 quad-core (RK3399 optional) |
| Local Store | EMMC 8G |
| Network Module | Support Ethernet, wireless (WIFI) |
| Audio | Support for 2.5W /4R speakers |
Interface
| USB Interfaces | 2 USB2.0 interfaces and 1 OTG interface |
| Serial Communication Interface | RS232 serial port, 485 |
| Relay Output | 2.5mm terminal 3P |
| Wiegand Interface | 2.5mm terminal 2P, support Wiegand 26/34 |
| Reset Interface | Yes |
| Wired Network Interface | 1 RJ45 Ethernet seat |
| Interface Reserved | IC card reader/ID card reader/QR code |
Function | Face Library Support | Max. 20000 |
| 1:N Face Recognition | Support |
| 1:1 Face Ratio | Support |
| Stranger Detection | Support |
| Identification Distance Configuration | Support |
| UI Interface Configuration | Support |
| Remote Upgrade of equipment | Support |
| Device Interface | Interfaces include device management, people/photo management, record query, etc |
| Deployment Way | Support public cloud deployment, LAN use |
| Body Temperature Detection | Support |
Infrared thermal imaging module camera | Temperature Detection Distance | 1M (best distance 0.5M) |
| Temperature Measurement Accuracy | ≤± 0.2 ℃ |
| Temperature Measurement Range | 25 ℃ ~ 45 ℃ |
| Thermal Imaging FOV | 32 X 32 ℃ |
| Normal Temperature Direct Release | Support |
| Excessive Temperature Alarm | Support (temperature alarm value can be set) |
Conventional parameters | Protection Grade | IP65, certain outdoor dustproof and waterproof function |
Power Supply Working Temperature | DC12V (+ / - 10%) - 20 ℃ ~ 60 ℃ |
| Storage Temperature | - 20 ℃ ~ 60 ℃ |
| Power Consumption | 10W (Max) |
| Installation | Secure with screws through supporting columns |
| Equipment Size | Standard: 271.24*128*21.48 (mm) |
| Weight | 2.7KGS |

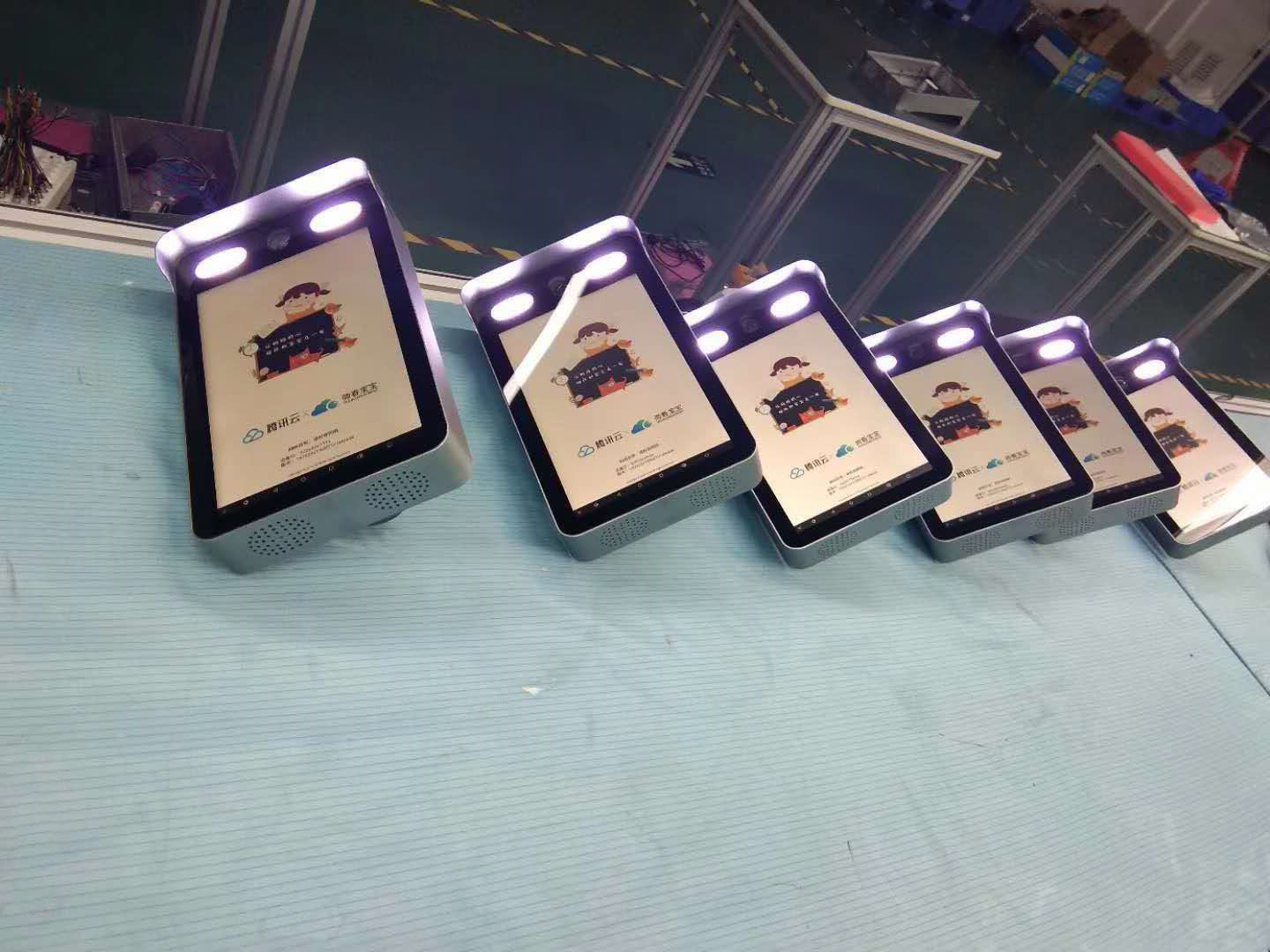

Real-picture
Product's details
Application
FAQ
Q:Are you a factory or a trading company?
A:We are a professional Advertising Display and LCD Touch Screen
manufacturer since 2016 with consistent quality control and very
positive &approving customer feedback.
Q:How long is the warranty time for your products?
A:1-year warranty, lifetime maintenance.
Q:Can I customize the product I ordered?
A:Absolutely yes, customization offer from customers are most
welcome in our company.
Q:What are your advantages?
A:We have our own ERP systems : Shorten lead times at low cost with
responsive production planning.
Q:How long is your delivery time?
A:The production time of conventional machines is 7-15 working days.
Q:Do you accept door to door shipping service?
A:Yes, we do. By DHL/FEDEX/UPS/TNT, etc.
Q:What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept
T/T,L/C,Western Union,Paypal.
