Ground Stand Rotating Screen LCD Display WIFI Network Android
Monitor
Details of product :
1. Full view, multi-function, easy to use.
2. Support landscape/portrait playback, support 180 degree rotation
function.
3. Many specifications and models, size series, variety, convenient
and flexible use, maintenance, update, upgrade easy, long service
life.
4. E-LED backlight, energy saving, high brightness, clear image.
5. Operating temperature can be controlled at -20°C~+50°C.
6. The working time can be as long as 50,000 hours, so the product
life need not worry.
7. Strong touch compatibility, support multi - point operation
protocol, multi - person simultaneous writing, etc.
8. The voltage is 3.3v, 5V, 12V for customers to choose.
| Model | Y49RAD/TS-A01 |
| Color | Black Panel+Silver Frame |
| Frame Material | Aluminum Frame |
| Panel Size | 49" |
| Panel Brand | BOE |
| Display Resolution | 1920*1080 |
| Brightness | 380cd/m2 |
| Viewing Angle | 178/178 |
| Contrast | 1200:1 |
| Color Depth | 16.7M |
| Scanning Frequency | 50-60Hz |
| Backlight | LED |
| Touch Mode | Infrared Multi Points Touch |
| Touch Screen | Ultrathin Stalinite |
| Life Cycle | Tab Times More than 60 million |
| Touch object | Anything lighttight,≥5mm |
| Response Time | ≤3ms |
| Light Resistance | ≥100000LUX |
| Error Tolerant Rate | 10% |
| Operating Mode | WINDOWS,Android;WIN 7,MAC OS,Linux |
| Software support | TUIO,WINDOWS |
| CPU | Quad core Cortex A7 1.8 GHZ |
| RAM | DDR3 2G |
| Storage | 8G |
| Interface | HDMI×1,VGA×1,,RJ45×1,USB2.0×2,PCAudio×1,MIC×1 |
| Audio | 2 8∩10W |
| Power Input | Input:AC110-220V |
| Working Temperature | 0℃—45℃ |
| Working Humidity | 20%-80%RH |
| Storage Humidity | 10%-75%RH |
| Accessories | Power Adapter,Certification,Warranty Card,user manual |
| Transport | Customized |
| After-Sales Service | one year warranty |

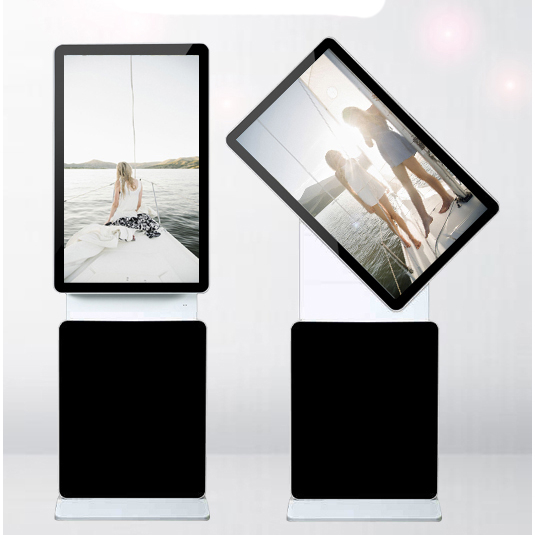

The Real-picture of the Rotating Touch Screen Monitor
The Product's details of the Rotating Touch Screen Monitor
The Application of the Rotating Touch Screen Monitor
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:What are your advantages?
A:We have our own ERP systems : Shorten lead times at low cost with
responsive production planning.
Q:Does your company support customization?
A:Yes,we support customization.Customizable festures
include,appearance,camera,brightness,logo,NFC,scanner,printer,discrete
graphics,wheels,color,etc.
Q:Can you provide us digital solution?
A:Yes,our experienced technician can provide you any digital
signage solution.
Q:How to update the program to digital signage?
A:Stand-alone version:update the program by USB flash drive.
Network version:remote control updte the program with software.
Q:What is your package box?
A:Stand are packaged using Honeycomb boxes, wood pallets or flight
case,depending on what is required.
Q:What's your guarantee for the products?
A:All our products have one-year guarantee from the shipping date.
And it is ok to upgrade to two or three years guarantee with
additional cost.
