All In One LCD Interactive Touch Scree Computer Touch Smart Board
PC Pen Interactive Whiteboard
Details of product:
1. Appearance is classic type, Stents shapes, Chassis or Other
customized.
2. The resolution can be adjusted synchronously according to
network speed.
3. UHD 4K High resolution, display content clearly visible.
4. Multiple sizes, multiple configurations, optional.
5. The appearance design is very thin, the touch use effect is
good.
6. The supported image formats are JPG,BMP,PNG, and GIF.
7. Sensitive touch box, click < 8ms, continuous writing <
3ms.
8. Video format is supported PAL/NTSC.
| Display Information |
| Screen Size | 55inch | 65inch | 75inch | 86inch |
| Panel Type | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Resolution | 3840*2160P | 3840*2160P | 3840*2160P | 3840*2160P |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Brightness | 320cd/m2 | 350cd/m2 | 350cd/m2 | 350cd/m2 |
| Active Area | 1209.6x 680.4mm | 1428.48x803.52mm | 1649.664x927.936mm | 1913x1084mm |
| Contrast Ratio | 4000:1 | 4000:1 | 1200:1 | 1200:1 |
| Response Time | 8ms | 8ms | 8ms | 8ms |
| Display Color | 8 bit 1.67M | 8 bit 1.67M | 10 bit 1.07B | 10 bit 1.07B |
| Field Frequency | 60Hz | 60Hz | 60Hz | 60Hz |
| Service Lifetime | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours |
| Touch System |
| Sensing Type | Infrared System (Multi 10 point touch) |
| Response Time | 6ms |
| Connection | Full-speed USB (Driver free) |
| Surface Protection | Tempered Glass with 4mm thickness Standard |
| Graphic card | Intel HD Graphics, Supports 1080P, H264, 3D play |
| Bluetooth | Bluetooth4.0 |
| Speaker | 15W x2 |
| Network | WIFI/ RJ45 |
| Port | USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker
out*1/ Mic in*1 |
| Built-in Dual System Android and Windows |
| Operating System | Android 6.0 |
| CPU | Quad Core Cortex A7 1.8 GHZ |
| RAM | DDR3 2G |
| ROM | 32G |
| SD card slot | Support MAX 128G |
| Port | RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2,
AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD
card slot*1, Touch USB*2, MIC*1 |
| Languages | English, French, Germany, Arabic, Italian, Japanese,Korean,
Russian, Spanish, etc |
| Power |
| Power Supply | 96~264V AC, 50/60Hz |
| Power Consumption | 220W~500W |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~70℃ |
| Supplied Accessories | AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard
software |
| Ambient Conditions |
| Dimension (L*W*H) | 1290.5*817.6*99.3mm | 1516.3*947.1*96mm | 1737.7*1072.6*103mm | 1991.1x1212.6x125.6mm |
| Package L*W*H | 1427*963*232mm | 1646*1062*230mm | 1860*1230*260mm | 2136*1370x280mm |
| Net weight | 40KG | 50KG | 68KG | 76KG |

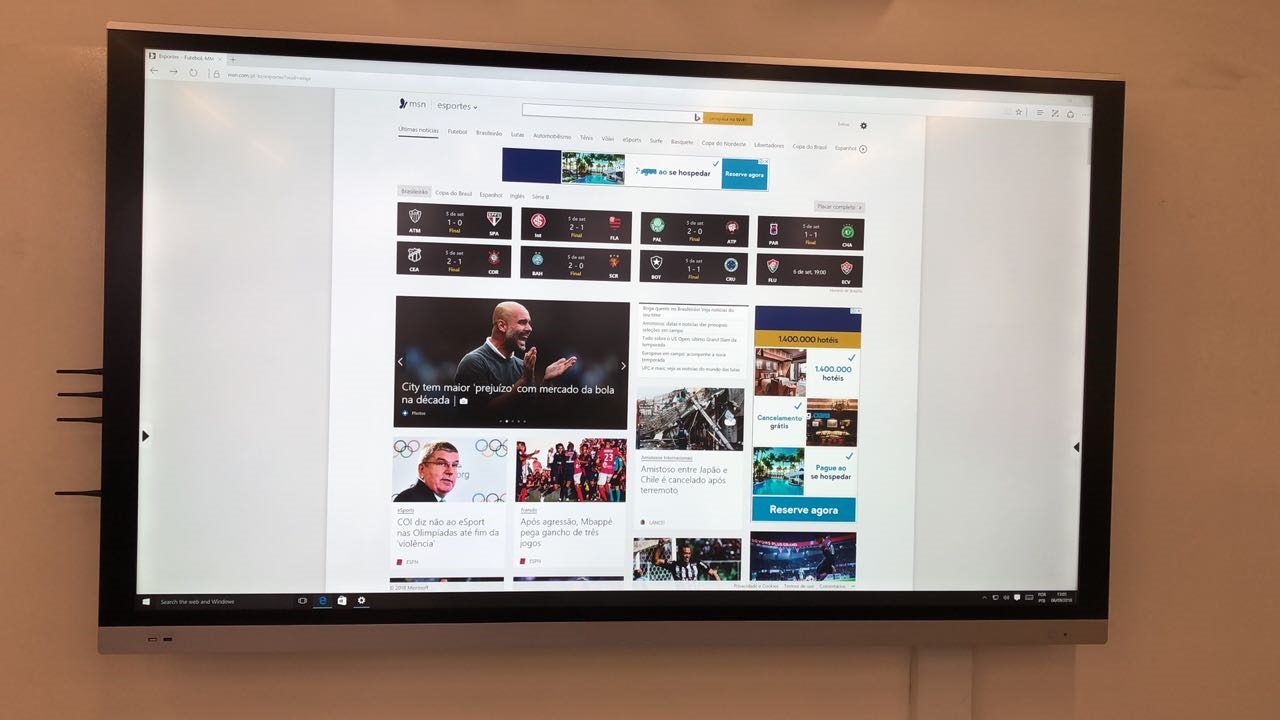

The Real-picture of the Interactive All In One PC
The Product's details of the Interactive All In One PC
The Application of the Interactive All In One PC
FAQ
Q: Are you a manufacturer or Trading company?
A: We are manufacturer which offer OEM/ODM service.
Q: What is the company's business philosophy?
A: Quality first, service first.
Q: What are your exporting countries?
A: More than 30 countries including
Dubai,American,Germany,Poland,South Korea,Thailand,Vietnam,etc.
Q: What is the shipping package?
A: Strong bubble bag+carton+wooden case/3mm Honeycomb box. Transport
breakage rate is less than 1%.
Q: What are your advantages?
A: We have our own ERP systems : Shorten lead times at low cost
with responsive production planning.
Q: What is your after-sale service?
A: We offer 100% guarantee of 1 year on our product. And life-time
technical service.
Q: How long is the warranty period of the product?
A: The regular warranty period is 1 year. If you need a longer
warranty, please contact our sales engineer.
