LCD Interactive Touch Screen 75Inch Touch Screen Monitor For
Meeting Room
Details of product:
1. The 10 point-touch function can be used by many people at the
same time.
2. Firm and durable case, made of Metal or Aluminium plate.
3. Support USB playback, support hot plug, content update
convenient and fast.
4. Intelligent blackboard recognition function.
5. The appearance design is very thin, the touch use effect is
good.
6. E-LED backlight, energy saving, high brightness, clear image.
7. Including dual system configuration and conference software, not
only for teaching but also for conferences.
8. UHD 4K High resolution, display content clearly visible.
| Display Information |
| Screen Size | 55inch | 65inch | 75inch | 86inch |
| Panel Type | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Resolution | 3840*2160P | 3840*2160P | 3840*2160P | 3840*2160P |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Brightness | 320cd/m2 | 350cd/m2 | 350cd/m2 | 350cd/m2 |
| Active Area | 1209.6x 680.4mm | 1428.48x803.52mm | 1649.664x927.936mm | 1913x1084mm |
| Contrast Ratio | 4000:1 | 4000:1 | 1200:1 | 1200:1 |
| Response Time | 8ms | 8ms | 8ms | 8ms |
| Display Color | 8 bit 1.67M | 8 bit 1.67M | 10 bit 1.07B | 10 bit 1.07B |
| Field Frequency | 60Hz | 60Hz | 60Hz | 60Hz |
| Service Lifetime | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours |
| Touch System |
| Sensing Type | Infrared System (Multi 10 point touch) |
| Response Time | 6ms |
| Connection | Full-speed USB (Driver free) |
| Surface Protection | Tempered Glass with 4mm thickness Standard |
| Graphic card | Intel HD Graphics, Supports 1080P, H264, 3D play |
| Bluetooth | Bluetooth4.0 |
| Speaker | 15W x2 |
| Network | WIFI/ RJ45 |
| Port | USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker
out*1/ Mic in*1 |
| Built-in Dual System Android and Windows |
| Operating System | Android 6.0 |
| CPU | Quad Core Cortex A7 1.8 GHZ |
| RAM | DDR3 2G |
| ROM | 32G |
| SD card slot | Support MAX 128G |
| Port | RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2,
AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD
card slot*1, Touch USB*2, MIC*1 |
| Languages | English, French, Germany, Arabic, Italian, Japanese,Korean,
Russian, Spanish, etc |
| Power |
| Power Supply | 96~264V AC, 50/60Hz |
| Power Consumption | 220W~500W |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~70℃ |
| Supplied Accessories | AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard
software |
| Ambient Conditions |
| Dimension (L*W*H) | 1290.5*817.6*99.3mm | 1516.3*947.1*96mm | 1737.7*1072.6*103mm | 1991.1x1212.6x125.6mm |
| Package L*W*H | 1427*963*232mm | 1646*1062*230mm | 1860*1230*260mm | 2136*1370x280mm |
| Net weight | 40KG | 50KG | 68KG | 76KG |
Real-picture
Product's details

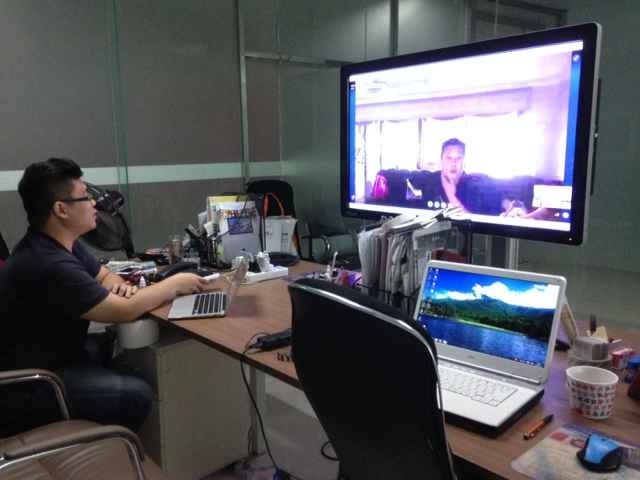

Application
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:How to ensure product quality?
A:Triple detection:
1) Raw material testing.
2) Detection after assembly is completed.
3) Detection after 48 hours of running.
Q:What brand of screen is used?
A:All our screen adopt A+ LG panel , Durable Aluminum Frame Design
with Tempered Glass Surface.
Q:Can I customize the product I ordered?
A:Absolutely yes, customization offer from customers are most
welcome in our company.
Q:When can I get the quotation?
A:We usually quote within 12 hours after we got your inquiry.
If it is very urgent,please call us or contact us via email,Skype
or WhatsApp.
Q:How long is the warranty period of the product?
A:The regular warranty period is 1 year. If you need a longer
warranty, please contact our sales engineer.
Q:What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept
T/T,L/C,Western Union,Paypal.
