LCD Interactive Touch Screen 65 Inch Dual System Wall Mount
Interactive Whiteboard
Details of product:
1. With teleconference function, can support 20 people at the same
time,And mobile phone terminal and computer terminal can be carried
out.
2. Original BOE bar display panel.
3. Multiple sizes, multiple configurations, optional.
4. Easy to operate, with front down button and remote control.
5. Switch between single and multi-touch modes.
6. Liquid crystal materials are organic polymer synthesis materials
with high purity.
7. Standby all day long, no worry about Lifespan.
8. Support a variety of languages, such as English, German,
Italian, Spanish and so on, you can choose according to your
preferences.
| Display Information |
| Screen Size | 55inch | 65inch | 75inch | 86inch |
| Panel Type | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD | a-Si TFT-LCD |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Resolution | 3840*2160P | 3840*2160P | 3840*2160P | 3840*2160P |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Brightness | 320cd/m2 | 350cd/m2 | 350cd/m2 | 350cd/m2 |
| Active Area | 1209.6x 680.4mm | 1428.48x803.52mm | 1649.664x927.936mm | 1913x1084mm |
| Contrast Ratio | 4000:1 | 4000:1 | 1200:1 | 1200:1 |
| Response Time | 8ms | 8ms | 8ms | 8ms |
| Display Color | 8 bit 1.67M | 8 bit 1.67M | 10 bit 1.07B | 10 bit 1.07B |
| Field Frequency | 60Hz | 60Hz | 60Hz | 60Hz |
| Service Lifetime | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours | ≥60,000 hours |
| Touch System |
| Sensing Type | Infrared System (Multi 10 point touch) |
| Response Time | 6ms |
| Connection | Full-speed USB (Driver free) |
| Surface Protection | Tempered Glass with 4mm thickness Standard |
| Graphic card | Intel HD Graphics, Supports 1080P, H264, 3D play |
| Bluetooth | Bluetooth4.0 |
| Speaker | 15W x2 |
| Network | WIFI/ RJ45 |
| Port | USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker
out*1/ Mic in*1 |
| Built-in Dual System Android and Windows |
| Operating System | Android 6.0 |
| CPU | Quad Core Cortex A7 1.8 GHZ |
| RAM | DDR3 2G |
| ROM | 32G |
| SD card slot | Support MAX 128G |
| Port | RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2,
AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD
card slot*1, Touch USB*2, MIC*1 |
| Languages | English, French, Germany, Arabic, Italian, Japanese,Korean,
Russian, Spanish, etc |
| Power |
| Power Supply | 96~264V AC, 50/60Hz |
| Power Consumption | 220W~500W |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -10℃~70℃ |
| Supplied Accessories | AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard
software |
| Ambient Conditions |
| Dimension (L*W*H) | 1290.5*817.6*99.3mm | 1516.3*947.1*96mm | 1737.7*1072.6*103mm | 1991.1x1212.6x125.6mm |
| Package L*W*H | 1427*963*232mm | 1646*1062*230mm | 1860*1230*260mm | 2136*1370x280mm |
| Net weight | 40KG | 50KG | 68KG | 76KG |

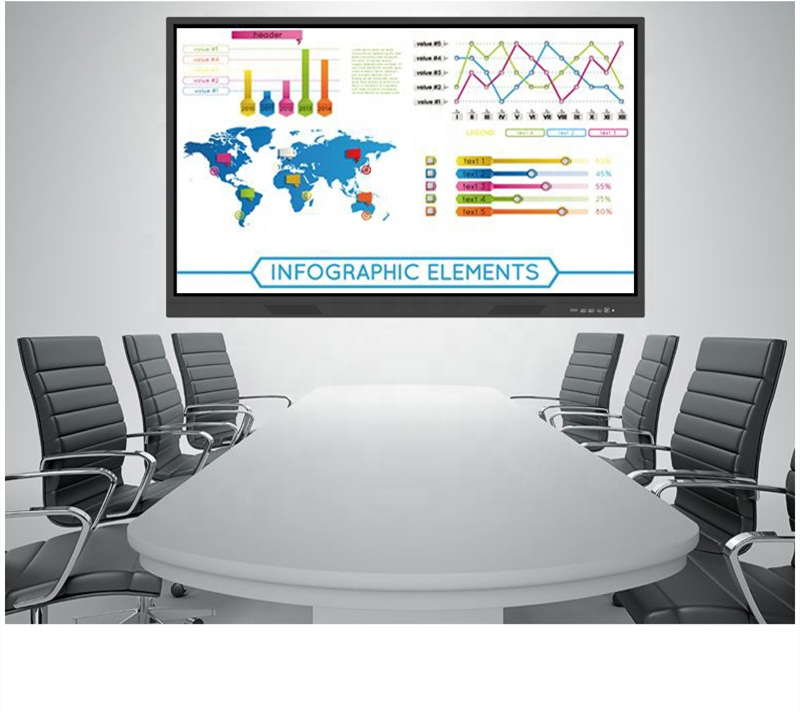

Real-picture
Product's details
Application
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:How to ensure product quality?
A:Triple detection:
1) Raw material testing.
2) Detection after assembly is completed.
3) Detection after 48 hours of running.
Q:What about the quality of your products?
A:We provide unrivaled quality:very rigorous testing process for
incoming quality control,input process quality control,and final
quality control for every piece.We follow QC test procedure,and do
100% FQC to ensure your satisfaction.
Q:What kind of design and development capabilities do you have?
A:Artwork/ Instruction manual/ product design according to
customer's requirement.
Q:How does your manufacturer do regarding quantity control?
A:Quantity is priority. Our manufacturer has gained CE , Rosh, FCC
authentication etc.
Q:How long is your delivery time?
A:The production time of conventional machines is 7-15 working days.
Q:What is your warranty?
A:We provide one year warranty.
