Capacitive Touch Stretched Bar LCD Display Monitor Customized
Storage
Details of product :
1. UHD 4K High resolution, display content clearly visible.
2. The 10 point-touch function can be used by many people at the
same time.
3. Support USB playback, support hot plug, content update
convenient and fast.
4. With Glass plus and glass Capacitive Sensing Module Technology.
5. Customizable appearance and logo.
6. Explosion-proof glass, protecting passerby and LCD panel.
7. Display quality ranges from the simplest monochrome character
graphics to video displays of various specifications with high
resolution, high color fidelity, high brightness, high contrast and
high response speed.
8. The machine has multiple interfaces, such as Earphone Output ×
1,USB 3.0 type-a × 1,Micro SD × 1, and USB type-c OTG × 1.
LCD Panel
| Panel Size | 48inch |
| Active Area | 1194.048(H) x 223.884(V)mm |
| Dimension | 1248.5*278.4*45.2mm |
| LCD Type | a-Si TFT active matrix |
| Color Deepth | 8 bit, 16.7M |
| Resolution | 3840*720 |
| Pixel Pitch | 103.65(H) x 310.95(V)um |
| Pixel Arrangement | Pixel RGB Vertical stripe |
| Display Mode | Normally Black |
| Viewing Angle | 178(H)/178(V) |
| Power | ≤50W |
| Brightness | 1000cd/m 2 |
Motherboard
| CPU | Rockchip RK3288,Quad core Cortex A7 1.8 GHz |
| RAM | DDR3 2G |
| Storage | EMMC 8GB/16G/32G Optional(Standard 8GB) |
| LCD Interface | LVDS |
| Voltage | 3.3V/5V/12V optional |
Network
| RJ45 |
| wifi,Wi-Fi 802.11b/g/n |
| Blueteeth 4.0 |
3G/4G(optional),WCDMA,EVDO,CDMA,
GSM850/900/1800/1900MHz/2100MHz |
Interface
| 1*HDMI 1.4 output 1080P |
| 2*USB |
| TF up to 64GB |
| 10W*2 8Ω Speaker |
| Power Supply | DC12V |
Software
| Operating System | Google Android 5.1 System |
| Language | Multi-Language Supported |
Video
| Support Video playback up to 1080P @60fps Support Multi-Format
video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263
including sorenson spark ,H.264
BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps |
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image | JPG,BMP,PNG,GIF |
system management
| File Management |
| Android System,open root access |
| Time switch |
| OTA remote upgrade(customized) |

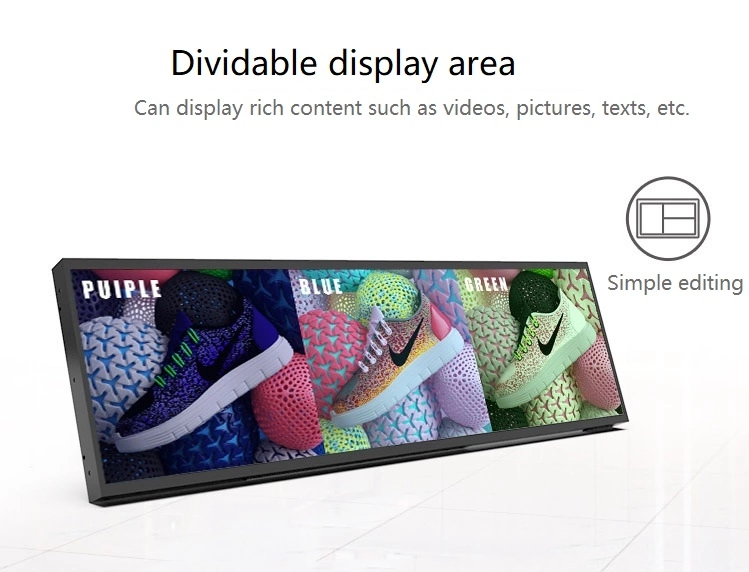

Real-picture
Product's details
Application
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:Can I order a sample?
A:We have a very strong quality control Samples are always
available for checking quality and can be dispatched to you very
quickly.
Q:Can I customize the product I ordered?
A:Absolutely yes, customization offer from customers are most
welcome in our company.
Q:What are your advantages?
A:We have our own ERP systems : Shorten lead times at low cost with
responsive production planning.
Q:What are your exporting countries?
A:More than 30 countries including
Dubai,American,Germany,Poland,South Korea,Thailand,Vietnam,etc.
Q:What about the quality of your products?
A:We provide unrivaled quality:very rigorous testing process for
incoming quality control,input process quality control,and final
quality control for every piece.We follow QC test procedure,and do
100% FQC to ensure your satisfaction.
Q:How long is the warranty period of the product?
A:The regular warranty period is 1 year. If you need a longer
warranty, please contact our sales engineer.
