Restaurant 21.5 Inch Interactive LCD Touch
Screen Table For Kids Games/Order
Detail of Products:
1. Power Consumption ≤160W.
2. The supported image formats are JPG,BMP,PNG, and GIF.
3. 4mm tempered glass protection screen.
4. Display area is 698.4mm*392.85mm.
5. The 10 point-touch function can be used by many people at the
same time.
6. Flat, light and thin, save a lot of raw materials and use space.
7. With Glass plus and glass Capacitive Sensing Module Technology.
8. Normally black display mode lcd panel.
| LCD Panel | Model number | Y215LTT-A02 |
| Panel Size | 21.5 inch |
| Resolution | 1920*1080 |
| Active Area | 698.4*392.85 |
| Color Depth | 16.7M |
| Pixel Pitch | 0.484*0.484 |
| Viewing Angel | 78*78*78*78 |
| Brightness | 350cd/m2 |
| Contrast Ratio | 5000:1 |
| Response Time | 6MS |
| Life Cycle | ≥60000 |
| Touch Screen | Touch Technology | Capacitive Touch |
| Touch Points | 10 points touch |
| Power supply | USB |
| Touch screen Resolution | 4096*4096 |
| Audio | Speaker | 8Ω/5W*2 |
| Magnetic circuit type | inner magnet |
| Maximum Volume | 94+3db |
| Audio Mode | stereo |
| Power | Power Input | AC100~240V,50/60Hz |
| Standby power Consumption | ≤1W |
| Power Consumption | ≤160W |
| Mainboard | Operating system | Android |
| CPU | Inter Core I3 |
| Random Access Mermory | DDR3 4GB |
| Hard Disk | 2.5"HDD 500GB |
| Interface | 4*USB2.0,1*VGA,1*LAN,1*HDMI |
| Mode of Networking | RJ45,WIFI(optional),3G(optional),4G(optional) |
| Others | Cabinet Material | SPCC/Aluminum/customized,with metallic lacquer |
| Color | White/black/customized |

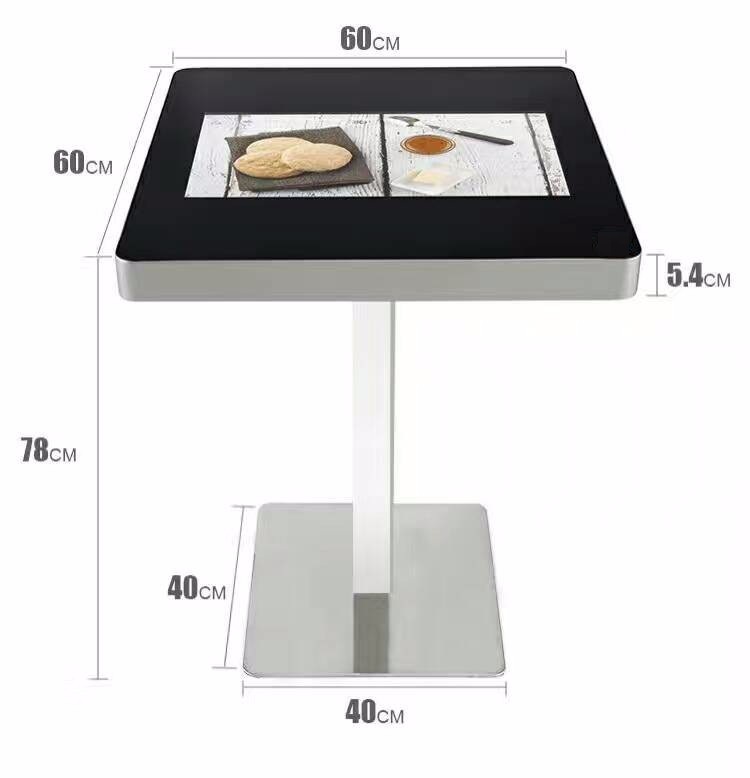

| Measurement | Refer to measurement pic |
| Installing | horizontal type |
| Working Temperature | 0℃~50℃/20%~80% |
| Strage Temperayure | -10℃~60℃/5%~95% |
| Acessories | base,power cable 1.8M,keys |
Real-picture
Product's details
Application
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:What are your advantages?
A:We have our own ERP systems : Shorten lead times at low cost with
responsive production planning.
Q:How to ensure product quality?
A:Triple detection:
1) Raw material testing.
2) Detection after assembly is completed.
3) Detection after 48 hours of running.
Q:What brand of screen is used?
A:All our screen adopt A+ LG panel , Durable Aluminum Frame Design
with Tempered Glass Surface.
Q:Can I order a sample?
A:We have a very strong quality control Samples are always
available for checking quality and can be dispatched to you very
quickly.
Q:How long is your delivery time?
A:The production time of conventional machines is 7-15 working days.
Q: What's the shipment terms and delivery time of your company?
A: The goods can be shipped by courier,by air or by sea. Depend on
quantity and customer's requirement.
