Retail Shop Use Stretched Bar LCD Display 24Inch USB Version
Details of product :
1. High performance, low power consumption, small size, good
portability.
2. Low voltage applications, low drive voltage, solid use safety
and reliability improvement.
3. Standby all day long, no worry about Lifespan.
4. E-LED backlight, energy saving, high brightness, clear image.
5. Aluminum profile frame, a cold-rolled plate.
6. Various version, different configurations, different prices.
7. Display quality ranges from the simplest monochrome character
graphics to video displays of various specifications with high
resolution, high color fidelity, high brightness, high contrast and
high response speed.
8. Good quality LCD panel, BOE,SAM and LG Brans are available for
you to choose.
LCD Panel
| Panel Size | 24inch |
| Active Area | 597.888(H) × 112.104(V) |
| Dimension | 616.7*136.1*33mm |
| LCD Type | a-Si TFT active matrix |
| Color Deepth | 8 bit, 16.7M |
| Resolution | 1,920x360 |
| Pixel Pitch | 0.3114(H) × 0.3114(V)um |
| Pixel Arrangement | RGB Vertical stripe |
| Display Mode | Normally Black |
| Viewing Angle | 178(H)/178(V) |
| Power | ≤50W |
| Brightness | 300cd/m 2 |
Motherboard
| LCD Interface | LVDS |
| Voltage | 3.3V/5V/12V optional |
Interface
| 1*HDMI 1.4 output 1080P |
| 2*USB |
| TF up to 64GB |
| 10W*2 8Ω Speaker |
| Power Supply | DC12V |
Software
| Language | Multi-Language Supported |
Video | Support Video playback up to 1080P @60fps Support Multi-Format
video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263
including sorenson spark ,H.264
BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps
|
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image | JPG,BMP,PNG,GIF |

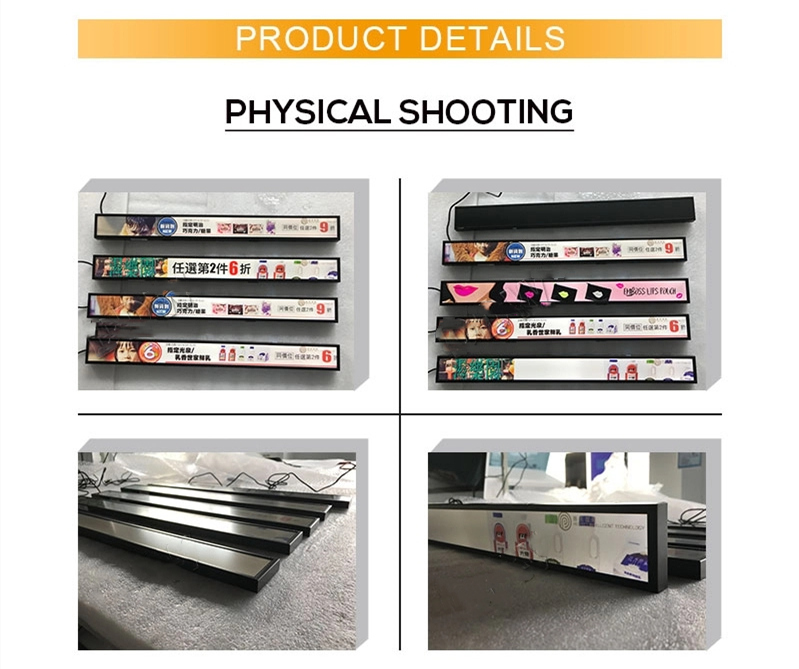

Real-picture

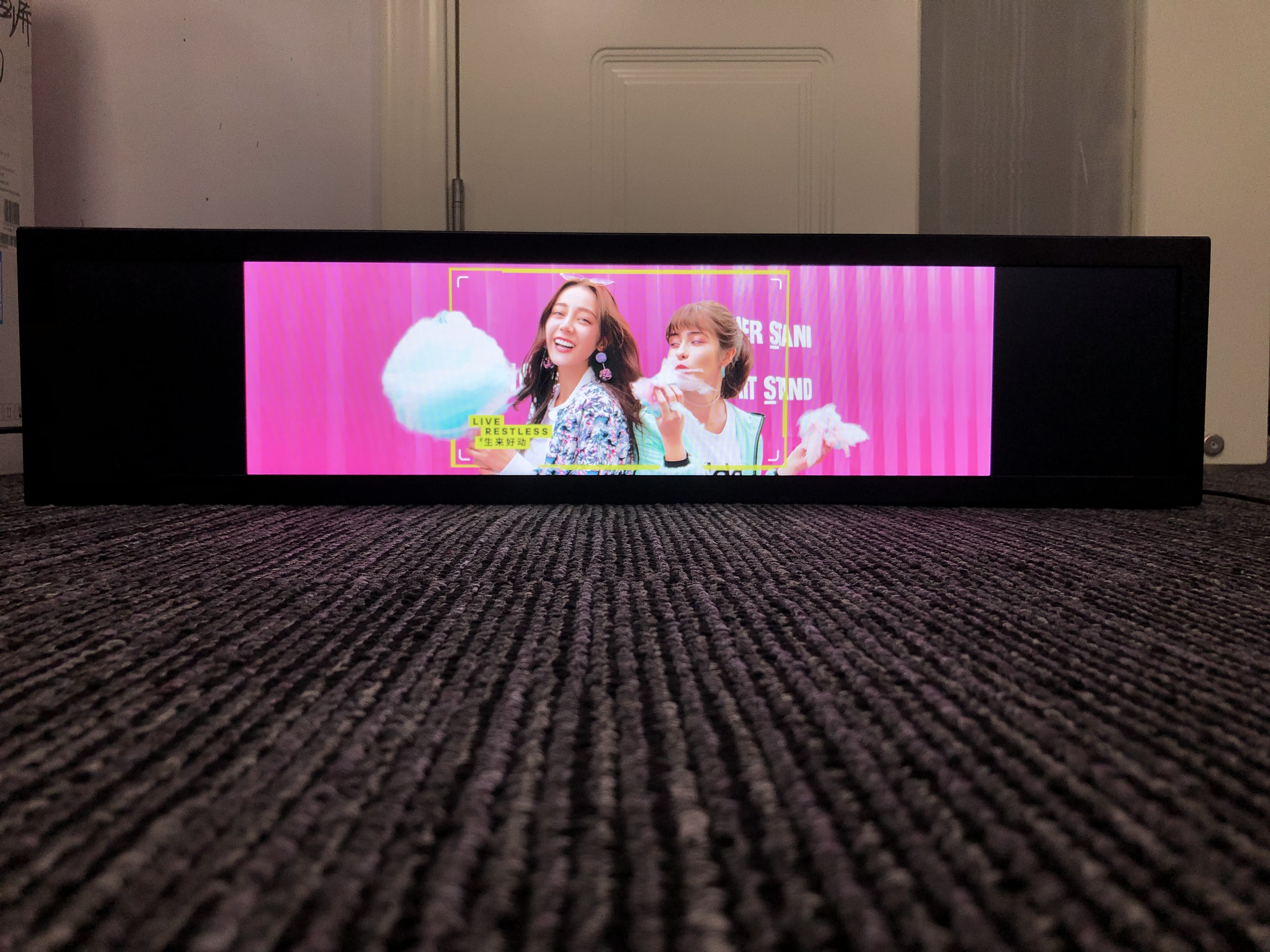

Product's details
Application
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:What is your MOQ?
A:Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q:How to place bulk order?
A:1)Tell us model number,quantity,color and other special
requirements.
2)Proforma Invoice will be made and sent for your approval.
3)Production will be arranged upon receipt of your approval and
payment or deposit.
4)Goods will be delivered as stated on the proforma invoice.
Q:Do you have any After-Sales service?
A:Yes!Our products have professional After-sales Department.
If you have any technical problem or question with the
goods,welcome to contact us directly.
Q:How to ensure product quality?
A:Triple detection:
1) Raw material testing.
2) Detection after assembly is completed.
3) Detection after 48 hours of running.
Q:How long is the warranty period of the product?
A:The regular warranty period is 1 year. If you need a longer
warranty, please contact our sales engineer.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept
T/T,L/C,Western Union,Paypal.
