Features Of The Stretched Bar Display:
1. Many specifications and models, size series, variety, convenient
and flexible use, maintenance, update, upgrade easy, long service
life.
2. Support landscape/portrait playback, support 180 degree rotation
function.
3. Various version, different configurations, different prices.
4. Waterproof screen, extend the service life of the product.
5. The supported image formats are JPG,BMP,PNG, and GIF.
6. LCD panel resolution is 1920 * 360.
7. The appearance design is very thin, the touch use effect is
good.
8. Professional and humanized inner structure, wiring neatly.
LCD Panel
| Panel Size | 28inch |
| Active Area | 699.84(H) x 131.22(V)mm |
| Dimension | 738(H) x171(V) x 42(D)mm |
| LCD Type | a-Si TFT active matrix |
| Color Deepth | 8 bit, 16.7M |
| Resolution | 1,920x360 |
| Pixel Pitch | 121.5(H) x 364.5(W)um |
| Pixel Arrangement | RGB vertical stripe |
| Display Mode | ADS |
| Viewing Angle | 178(H)/178(V) |
| Power | ≤50W |
| Brightness | 700cd/m 2 |
Motherboard
| CPU | Rockchip RK3288,Quad core Cortex A7 1.8 GHz |
| RAM | DDR3 2G |
| Storage | EMMC 8GB/16G/32G Optional(Standard 8GB) |
| LCD Interface | LVDS |
| Voltage | 3.3V/5V/12V optional |
Network
| RJ45 |
| wifi,Wi-Fi 802.11b/g/n |
| Blueteeth 4.0 |
3G/4G(optional),WCDMA,EVDO,CDMA, GSM850/900/1800/1900MHz/2100MHz |
Interface
| 1*HDMI 1.4 output 1080P |
| 2*USB |
| TF up to 64GB |
| 10W*2 8Ω Speaker |
| Power Supply | DC12V |
Software
| Operating System | Google Android 5.1 System |
| Language | Multi-Language Supported |
Video | Support Video playback up to 1080P @60fps Support Multi-Format
video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263
including sorenson spark ,H.264
BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps
|
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image | JPG,BMP,PNG,GIF |
system management
| File Management |
| Android System,open root access |

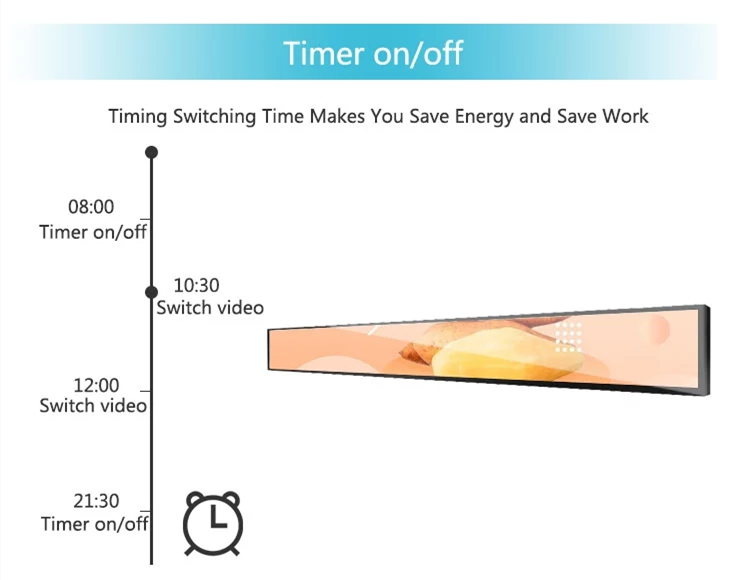

| Time switch |
OTA remote upgrade(customized) |
Application Of The Stretched Bar Display:
Widely use on Airport, station, medical institution, supermarket,
exhibition, stadium and gymnasium, subway, hotel, rail way station,
bank, commercial center, mobile show, chain-store and etc.
The Real-picture of the Stretched Bar Display
The Product's details of the Stretched Bar Display

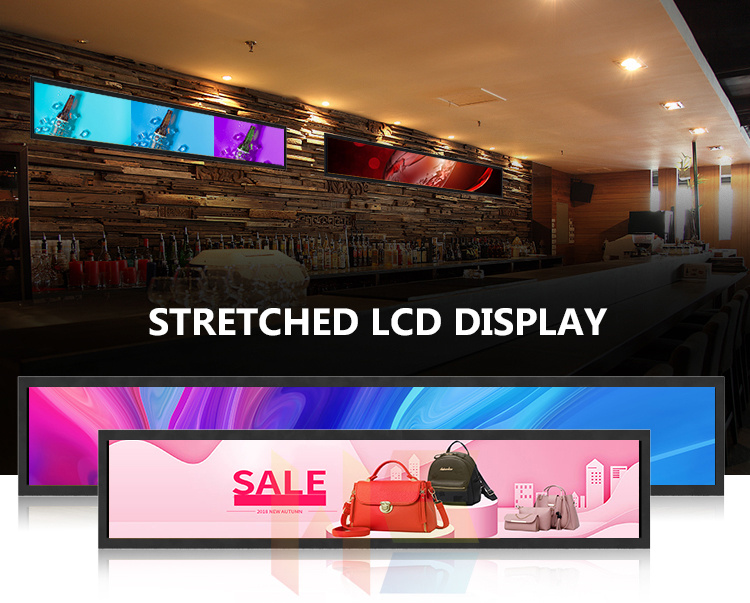

The Application of the Stretched Bar Display
FAQ
Q: Are you a manufacturer or Trading company?
A: We are manufacturer which offer OEM/ODM service.
Q: What is the minimum order quantity?
A: The MOQ is 1. Welcome to order samples. Quality is our confidence.
Q: How to ensure product quality?
A: Triple detection:
1) Raw material testing.
2) Detection after assembly is completed.
3) Detection after 48 hours of running.
Q: What is your after-sale service?
A: We offer 100% guarantee of 1 year on our product. And life-time
technical service.
Q: May i have my logo on my products?
A: Yes. We offer logo customized service.
Q: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept
T/T,L/C,Western Union,Paypal.
Q: What's the shipment terms and delivery time of your company?
A: Well,they depends on the quantity of your order.As you know,we
need time to manufacture the machines.but mostly,the shipment time
is 7-15
working days after delivery.For delivery way,for sample and bulk
order< 100KG,we will kindly suggest Express and Air freight,when
Air freight
and Sea shipping for bulk order>100KG.As for detailed cost, it
depends on your final order.
