Digital Stretched Bar LCD Display Ultra Wide Aluminium Shell
Display
Details of product :
1. Support USB playback, support hot plug, content update
convenient and fast.
2. Special bar display resolution satisfies special display
applications.
3. OSD multi-language: support Chinese, English and other
multi-language.
4. Display large amount of information,Easy to color.
5. High performance, low power consumption, small size, good
portability.
6. Many specifications and models, size series, variety, convenient
and flexible use, maintenance, update, upgrade easy, long service
life. 7. LCD panel resolution is 1920 *190.
8. Aluminum profile frame, a cold-rolled plate.
LCD Panel
| Panel Size | 37inch |
| Active Area | 919.3(H) × 138.85 (V) mm |
| Dimension | 998*284.8*78mm |
| LCD Type | a-Si TFT active matrix |
| Color Deepth | 8 bit, 16.7M |
| Resolution | 1,920x190 |
| Pixel Pitch | 121.5(H) x 364.5(W)um |
| Pixel Arrangement | RGB vertical stripe |
| Display Mode | ADS |
| Viewing Angle | 178(H)/178(V) |
| Power | ≤50W |
| Brightness | 700cd/m 2 |
Motherboard
| CPU | Rockchip RK3288,Quad core Cortex A7 1.8 GHz |
| RAM | DDR3 2G |
| Storage | EMMC 8GB/16G/32G Optional(Standard 8GB) |
| LCD Interface | LVDS |
| Voltage | 3.3V/5V/12V optional |
Network
| RJ45 |
| wifi,Wi-Fi 802.11b/g/n |
| Blueteeth 4.0 |
3G/4G(optional),WCDMA,EVDO,CDMA, GSM850/900/1800/1900MHz/2100MHz |
Interface
| 1*HDMI 1.4 output 1080P |
| 2*USB |
| TF up to 64GB |
| 10W*2 8Ω Speaker |
| Power Supply | DC12V |
Software
| Operating System | Google Android 5.1 System |
| Language | Multi-Language Supported |
Video | Support Video playback up to 1080P @60fps Support Multi-Format
video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263
including sorenson spark ,H.264
BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps
|
| Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image | JPG,BMP,PNG,GIF |
system management
| File Management |
| Android System,open root access |
| Time switch |
| OTA remote upgrade(customized) |

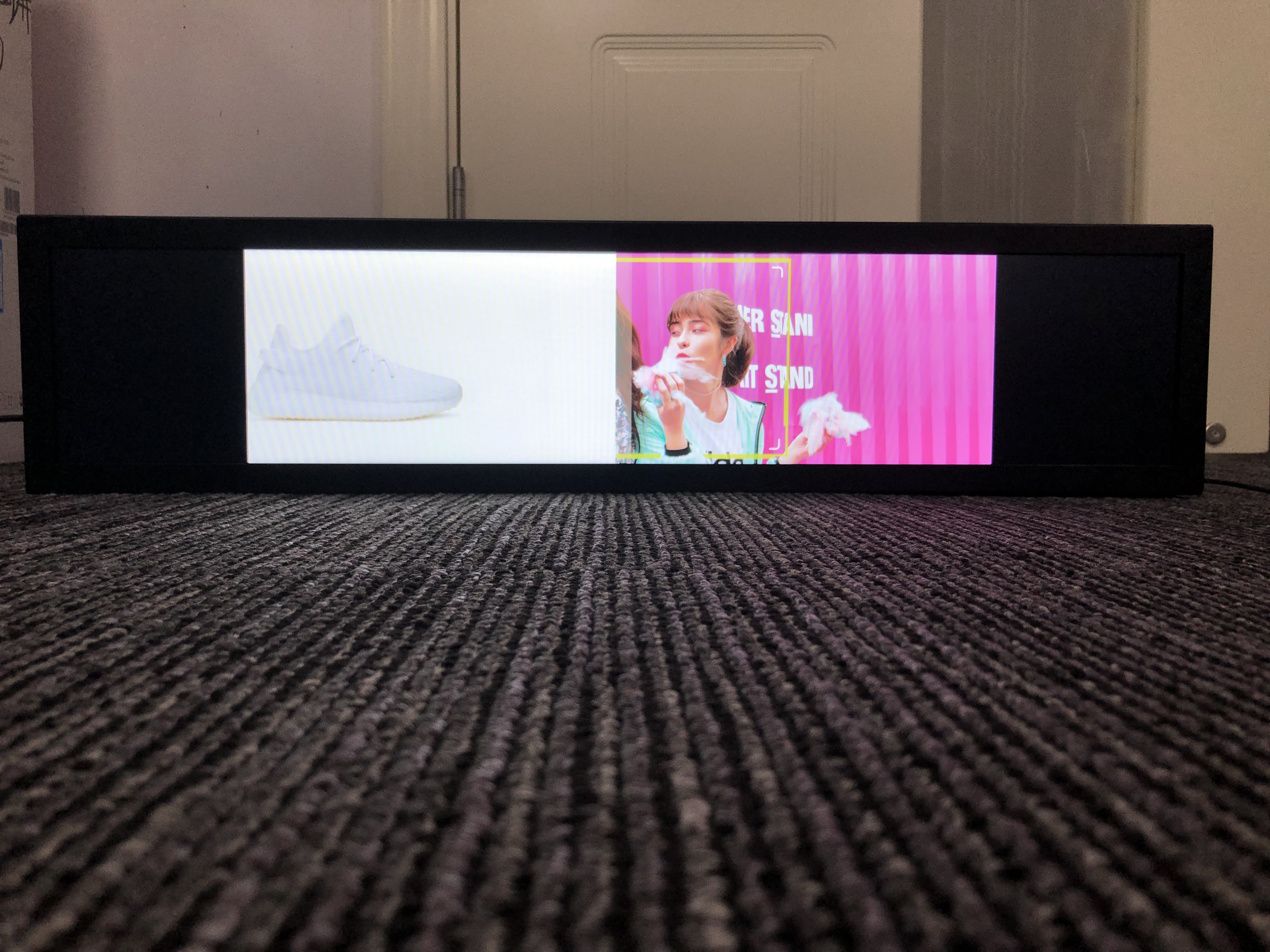

Real-picture
Product's details

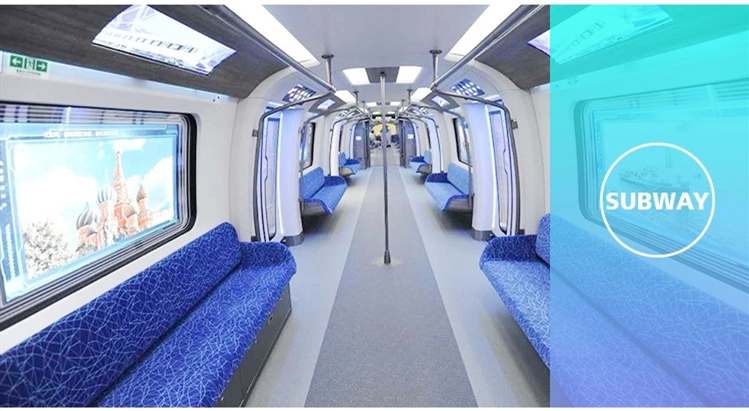

Application
FAQ
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:How does your manufacturer do regarding quanlity control?
A:Quanlity is priority. Our manufacturer has gained CE , RoHS, FCC
authentication etc.
Q:What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept
T/T,L/C,Western Union,Paypal.
Q:What is your MOQ?
A:Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q:How long is the warranty period of the product?
A:The regular warranty period is 1 year. If you need a longer
warranty, please contact our sales engineer.
Q:How long is your delivery time?
A:The production time of conventional machines is 7-15 working days.
Q: What's the shipment terms and delivery time of your company?
A: The goods can be shipped by courier,by air or by sea. Depend on
quantity and customer's requirement.
