Ultra Wide 19 Inch Stretched Bar LCD
Display Advertising Display
19 Inch Ultra Wide Stretched Displays Screen Advertising Display
Market
Android Version Ultra Wide
LCD Display 19 Inch Stretched Bar LCD Display
Details of product:
Dimensions :19 inches, 21 inches, 24 inches, 28 inches, 36 inches,
48 inches, 86 inches.
Content management software
* Remote control volume, timing switch, synchronous update computer
real-time monitoring.
Applicable scenario
* Retail, supermarket, chain stores, shelves, transportation,
subway, bus, etc
LCD Panel
| Panel Size | 19inch |
Active Area | 476.64(H) × 89.37(V) mm |
Dimension | 507.7×120.4×49 |
LCD Type | a-Si TFT active matrix |
Color Deepth | 8 bit, 16.7M |
Resolution | 1920x360 |
Pixel Pitch | 0.24825(H) × 0.24825(V) |
Pixel Arrangement | RGB Vertical stripe |
Display Mode | Normally Black |
Viewing Angle | 178(H)/178(V) |
Power | ≤50W |
Brightness | 300cd/m2 |
Motherboard
| LCD Interface | LVDS |
Voltage | 3.3V/5V/12V optional |
Interface
| 1*HDMI 1.4 output 1080P |
2*USB |
TF up to 64GB |
10W*2 8Ω Speaker |
Power Supply | DC12V |
Software
| Language | Multi-Language Supported |
Video
| Support Video playback up to 1080P @60fps Support Multi-Format
video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263
including sorenson spark ,H.264
BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps
|
Audio | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
Image | JPG,BMP,PNG,GIF |

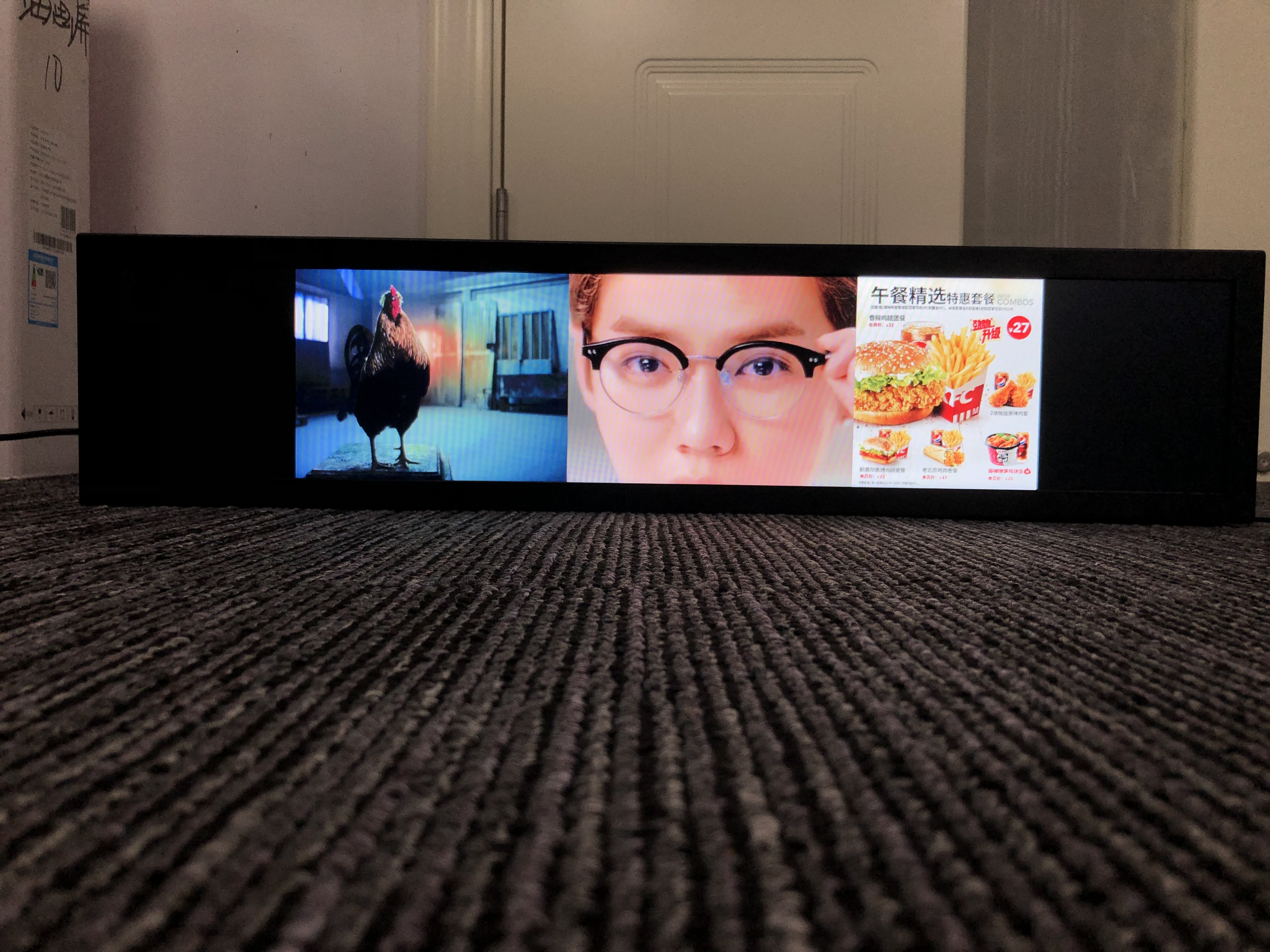

Real-picture
Product's details
Application
FAQ
Q: Are you a manufacturer or a trading company?
A: Yoda is a professional manufacturer of interactive touch
displays and related industries with more than 6 years of
experience.You are always welcome to visit our factory
Q: How do you carry out quality control in your factory?
A: Quality comes first.We attach great importance to quality
control from start to finish.
We focus on every detail and our factory is FCC, CE, RoHS
certified.
Q: What's the shipment terms and delivery time of your company?
A: The goods can be shipped by courier,by air or by sea. Depend on
quantity and customer's requirement.
Q: What information do you need before quote the price?
A: We should comfirm the following information with you:
1.LCD panel size
2.the function and application
3.wall mounted or floor standing style.
Q: How long is the warranty?
A: Our standard warranty is one year.We can also provide an
extended warranty upon your request at an additional cost.
Q: What is the price? And do you provide customization, OEM or ODM
service?
A: Our price is depend on the functions, sizes, designs,
quantities, applications etc, please send the inquiry and tell us
more about your
requirements and project then enable us to quote the price
accordingly. We have structure engineer teamwhich can provide
customization,OEM or ODM service.
Q: If you are not online,how can i get contact with you?
A: If i am not online,please kindly check the following contact
information,you can send me email,you can call me or skype me,i
will reply you
ASAP.
